Description
Acrylic LED light strip design with color-changing capabilities based on different usage states, complemented by a high-back frosted partition design to enhance texture.
Design Advantages:
- The multifunctional inclined desktop design provides fixed embedded positions for small desktop devices, effectively organizing the desktop layout and enhancing command and control efficiency.
- The high-strength pull aluminum support, combined with flexible and versatile material applications, enables washable, replaceable, and sound-absorbing features, effectively enhancing office quality, reducing work pressure, and soothing the mind.
- The innovative design featuring polygonal elements and the use of die-cast metal materials expands the load-bearing area of the support legs, scientifically enhancing the product’s stability. This makes the product more robust and durable.
- The 306mm high multi-groove wall-mounted aluminum profile allows for mounting monitors on the back panel using monitor brackets, saving desktop space and enhancing control efficiency with the potential for multiple screens per workstation.
- The dual-directional wiring channel for power and data ensures efficient equipment operation by reducing signal interference from high-power electrical components to low-power devices. With a channel distance of over 30cm, it effectively safeguards the integrity of the system.
Product Composition
The console table is equipped with monitor arms, fixed-line brackets, keyboard trays, file cabinets, ergonomic chairs, etc., and has been upgraded with ergonomic and smart modules. Through a full range of wireless, wired, and desktop communication services, it meets the differentiated needs of different industries.
|
Product name
|

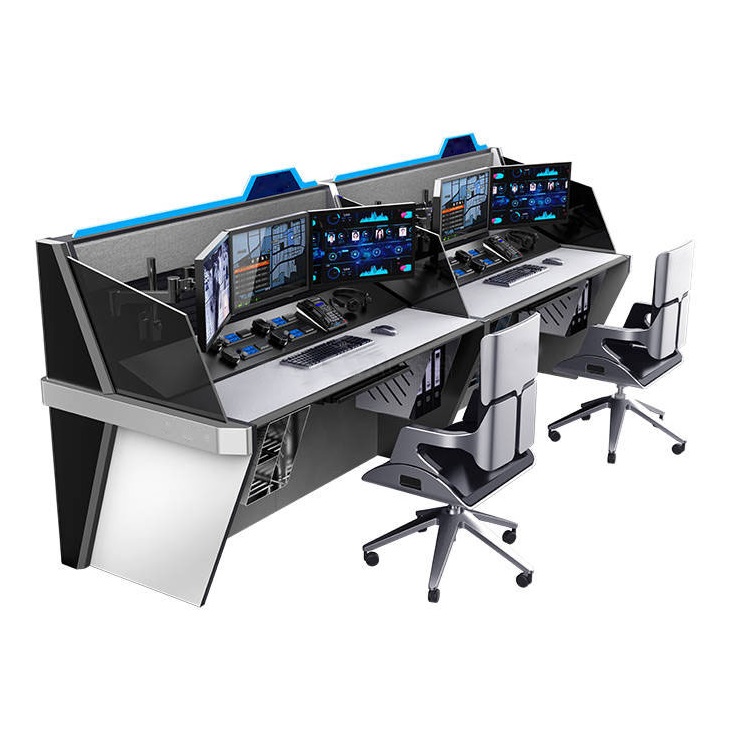

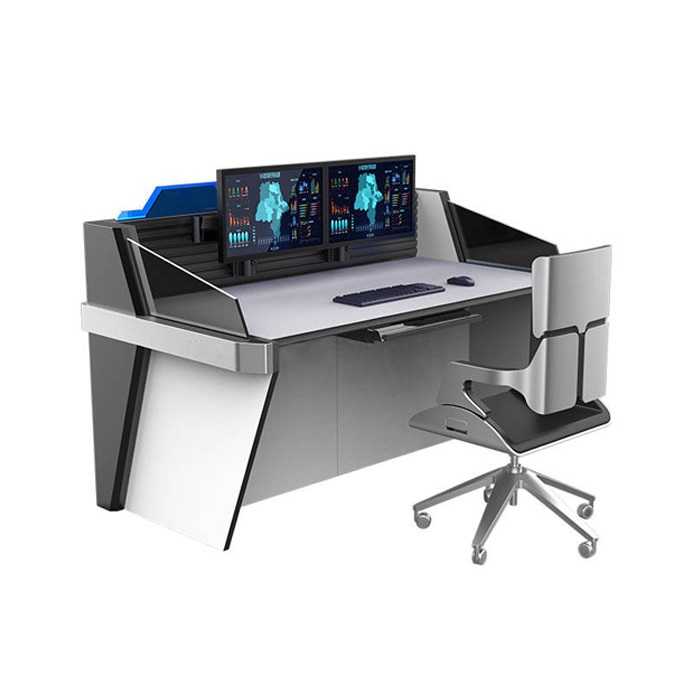

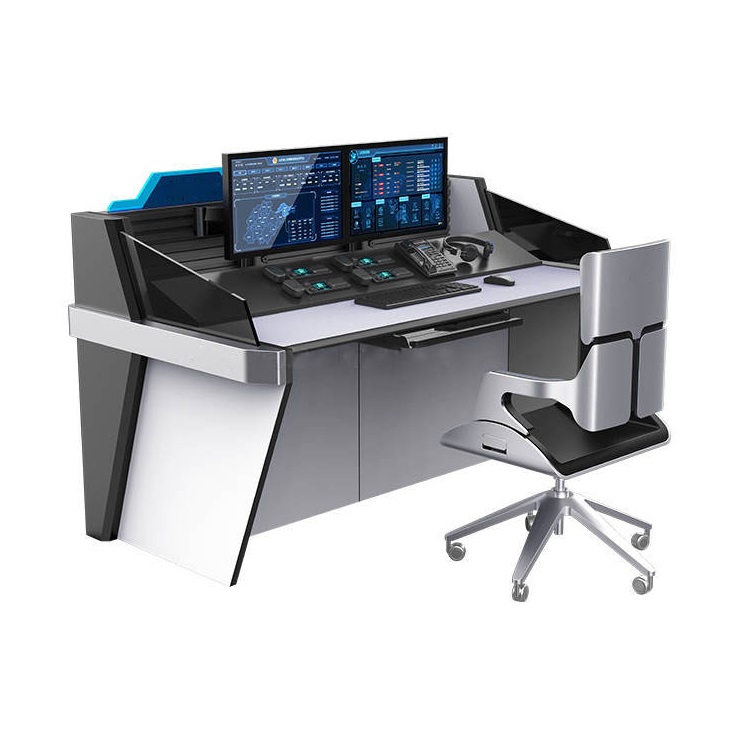

Control room console/Command center console desk
|
|
Brand
|
Chonghan
|
|
Color
|
Gray/white/black, etc
|
|
Countertop Material
|
HPL (High Pressure Laminate) board, safe load greater than 250 kgs
|
|
Countertop thickness
|
27mm or customized
|
|
Main frame
|
First-grade cold-rolled steel
|
|
Front and rear door panels
|
High-quality cold-rolled steel/HPL board
|
|
The edge of the countertop (Hand Pillow/Panel Armrest/Wrist Rest)
|
Flexible polyurethane, width ≥ 30mm
|
|
Back wall
|
The back wall is fixed on the rear beam, which is made of aluminum alloy parts, and the groove plate for hanging the monitor arm is made of aluminum alloy profiles with a cross-section thickness of 2 mm.
|
|
Light guide plate
|
No need/need, acrylic material, light color can be customized
|
|
Side panel
|
High-quality cold-rolled steel/HPL board
|
|
Light strip
|
No need, blue/green/orange, etc
|
|
Height adjustable function
|
No need/automatic/manual
|
|
Wiring design
|
The console combines control neutral practical application scenarios with professional wire troughs inside.
|
|

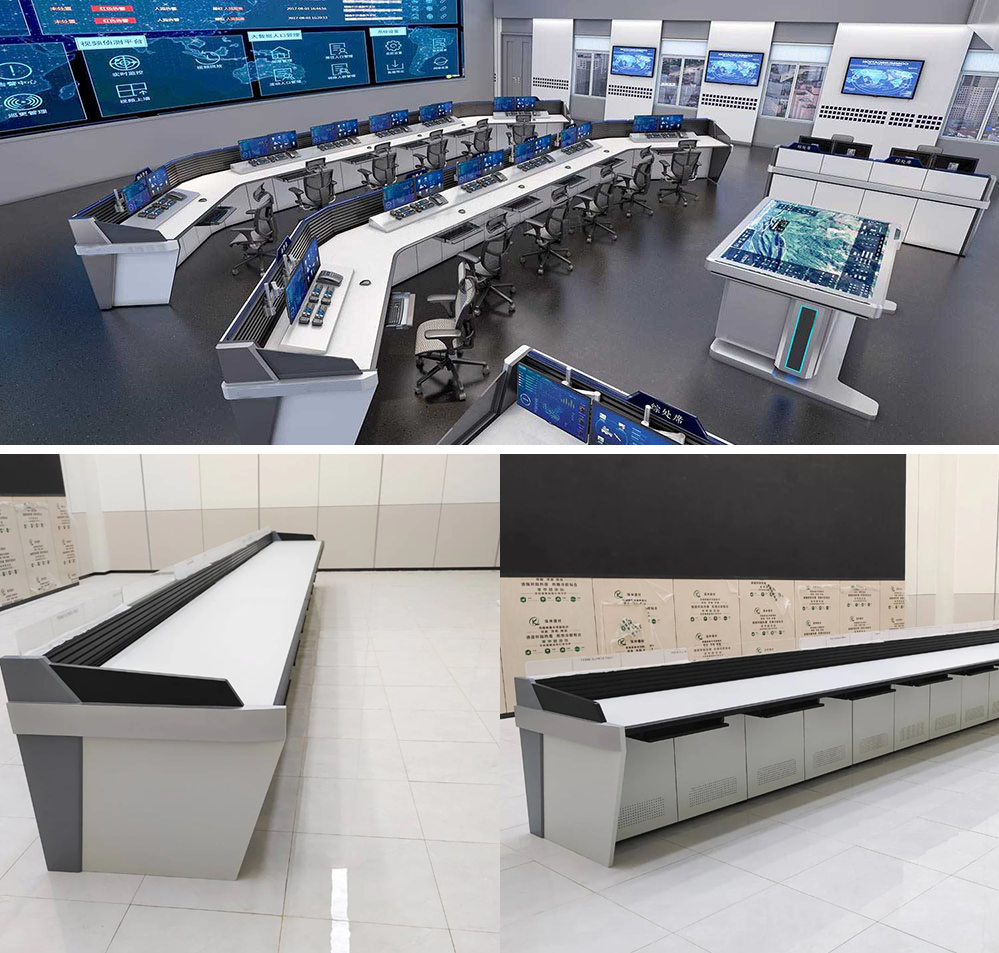

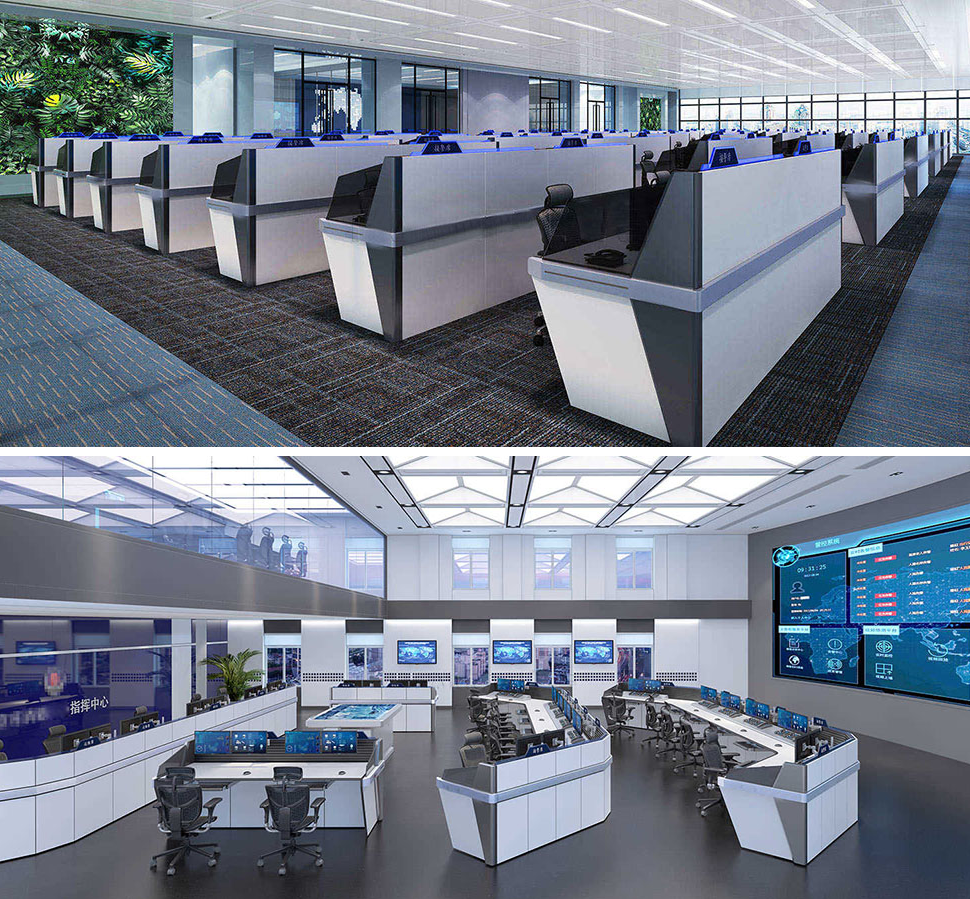

Application
|
Police, fire and first aid center, traffic control, rail, energy industry, power grid center, IT and network operation, urban management field, financial transaction center, government and defense, aerospace field, radio and television media field, industrial manufacturing field, environmental protection field, ocean port field, medical command center, process control field, monitoring system, command center, data center, smart city, public safety, transport, etc
|
|
Logo
|
Accept customized
|
|
Quality assurance
|
5 years
|
Product Features
1. Structurally stable & Large interior space
Column Thickening: The components in the frame structure are made from first-grade cold-rolled steel plate through stamping and bending. Load-bearing beam components have a thickness not less than 3mm.
Convenient for disassembly: The specialized structural connectors for the control console have high connection strength, are not easily loosened, possess strong deformation resistance, precise dimensional tolerances, and provide ample internal frame space, meeting the needs of customers to accommodate different equipment.
2. Good Heat Dissipation System
The heat dissipation design follows principles of aerodynamics, incorporating concealed gaps and channels for efficient ventilation. It not only employs concealed ventilation holes for heat dissipation but also utilizes a door-panel heat dissipation method. Each cabinet’s front and rear panels are equipped with heat dissipation vents (with a perforation rate of 30%). Using the principle of airflow exchange, it creates a circulating air within the cabinet, achieving a dual-effect heat dissipation function.
Cool air enters from the front, rear, and bottom of the cabinet, becomes heated within the control console, and then flows out from the top. This achieves long-term safe operation of internal equipment without relying on built-in cooling fans or similar devices.
At the same time, the hot air is directed away from the vicinity of people to avoid impacting the health of monitoring personnel. The ventilation cover plate features ventilation round holes with a diameter of 1mm and a spacing of 2mm. The control console door panel can be chosen with a hollowed-out design for the logo, facilitating timely heat dissipation.
3. Reasonable Wiring System
1) Professional wiring channels are set up inside the console to adapt to the overall system environment.
2) Sufficient internal space allows for standardized, neat wiring, smooth, beautiful, reasonable and safe.
3) It has the function of separating strong and weak electricity to avoid mutual interference.
4. Ergonomic Applications
Improve human comfort and physical and mental health through the calculation of key factors such as viewing distance. Each part of the control console is designed according to the principles of ergonomics, aiming to provide users with a comfortable experience. The tabletop height is set between 715-750mm, ensuring sufficient legroom underneath and preventing fatigue during prolonged operations.
Color Options
Countertop options & Spraying options
